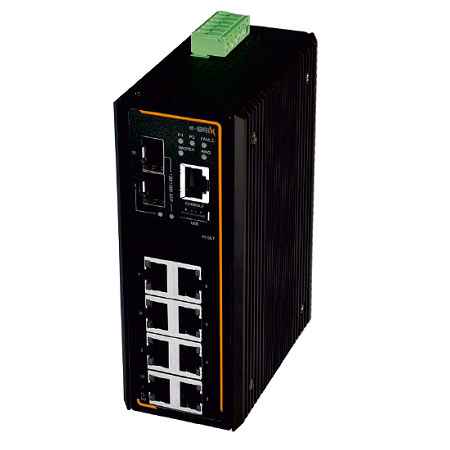

10-Port Industrial Gigabit Managed Ethernet Switch
10-Port Industrial Gigabit Managed Ethernet Switch
8*10/100/1000Tx + 2*100/1000 SFP Slot, 12-48VDC Power Inputs
- 8-port 10/100/1000Tx Gigabit Ethernet
- 2-port 100/1000 SFP Slot
- Configuration: Web GUI, Serial Console, CLI Command
- Network Redundancy support: G.8032 ERPS,RSTP,MSTP
- Redundant Power Inputs Design, 12-48VDC
- IP30 Rugged Metal Case Design
- DIN-Rail Mounting, Wall Mounting
- Operating Temperature Range – STD: -10°C ~ 65°C, EOT: -40°C ~ 75°C
- Supports IGMP v1/v2, up to 256 groups
- Supports Storm Protection for Broadcast, Multicast and Unicast frames.
- Supports IEEE802.1p QoS and CoS/ToS
- Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3
- System Warning setting for automatic warning through e-mail
| Wavelength | : Depends on SFP modules |
| RS232 Serial Console | : 1*RS232 in RJ45 connector with console cable, baud rate 115200bps,8,N,1 |
| Configuration Backup | : 1*USB 2.0 for firmware update, configuration backup/restore/boot up and syslog |
| Input Voltage | : 12-48VDC, Redundant Inputs |
| Overload Current Protection | : Yes |
| Reverse Polarity Protection | : Yes |
| Power Consumption | : 15 Watts for System |
| Housing | : Metal, IP30 protection |
| Dimensions | : 54 x 142 x 99 mm (W x H x D) |
| Weight | : Unit Weight: 0.9kg, Shipping Weight: 1.3kg |
| Mounting | : DIN-Rail Mounting, Wall Mounting |
| Operating Temperature | : STD: -10°C ~ 65°C (14°F ~ 149°F) |
| Storage Temperature | : -40°C ~ 85°C (-40°F ~ 185 °F) |
| Operating Humidity | : 5 to 95%, (non-condensing) |
| EMI | : FCC Part 15 Subpart B Class A, CE EN 55022 Class A |
