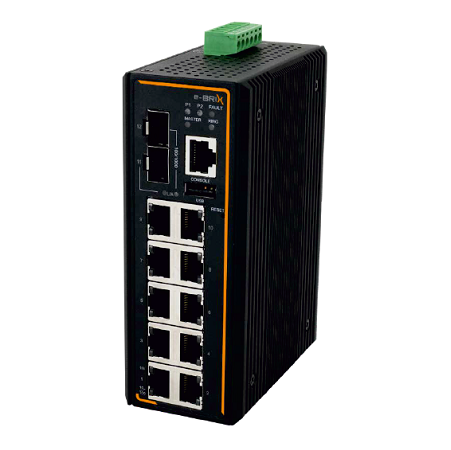

12-Port Industrial Gigabit Managed Ethernet Switch
12-Port Industrial Gigabit Managed Ethernet Switch
10*10/100/1000Tx + 2*100/1000 SFP Slot, 12-48VDC Power Inputs
- 10-port 10/100/1000Tx Gigabit Ethernet
- 2-port 100/1000 SFP Slot
- Configuration: Web GUI, Serial Console, CLI Command
- Network Redundancy support: G.8032 ERPS,RSTP,MSTP
- Redundant Power Inputs Design, 12-48VDC
- IP30 Rugged Metal Case Design
- DIN-Rail Mounting, Wall Mounting
- Operating Temperature Range – STD: -10°C ~ 65°C, EOT: -40°C ~ 75°C
- Supports IGMP v1/v2, up to 256 groups
- Supports Storm Protection for Broadcast, Multicast, and Unicast frames
- Supports IEEE802.1p QoS and CoS/ToS
- Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3
- System Warning setting for automatic warning through E- Mail
|
Wavelength |
: Depends on SFP modules |
|
RS232 Serial Console |
: 1*RS232 in RJ45 connector with console cable, baud rate 115200bps,8,N,1 |
|
Configuration Backup |
: 1*USB 2.0 for firmware update, configuration backup/restore/boot up and syslog |
|
Input Voltage |
: 12-48VDC, Redundant Inputs |
|
Overload Current Protection |
: Yes |
|
Reverse Polarity Protection |
: Yes |
|
Power Consumption |
: 15 Watts for System |
|
Housing |
: Metal, IP30 protection |
|
Dimensions |
: 54 x 142 x 99 mm (W x H x D) |
|
Weight |
: Unit Weight: 0.9 kg, Shipping Weight: 1.3 kg |
|
Mounting |
: DIN-Rail Mounting, Wall Mounting |
|
Operating Temperature |
: STD: -10°C ~ 65°C (14°F ~ 149°F) |
|
Storage Temperature |
: -40°C ~ 85°C (-40°F ~ 185 °F) |
|
Operating Humidity |
: 5 to 95%, (non-condensing) |
|
EMI |
: FCC Part 15 Subpart B Class A, CE EN 55022 Class A |
