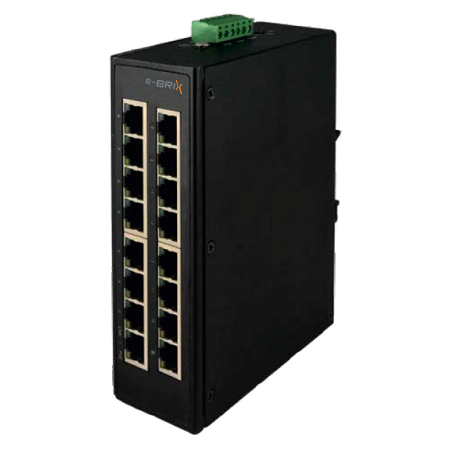

16-Port Industrial Ethernet Switch
16-Port Industrial Ethernet Switch
16*10/100/1000Tx, 12 – 56VDC Power Input
- 16-Port 10/100/1000 Tx Gigabit Ethernet
- Input 12-56VDC
- IP30 Rugged Metal Case Design
- DIN-Rail Mounting, Wall Mounting
- Operating Temperature Range -40°C ~ 75°C
- Supports Power 1, Power 2, and Power
- DIN (For external power adapter).
- 16-Port 10/100/1000 Tx Gigabit Ethernet
- Input 12-56VDC
- IP30 Rugged Metal Case Design
- DIN-Rail Mounting, Wall Mounting
- Operating Temperature Range -40°C ~ 75°C
- Supports Power 1, Power 2, and Power
- DIN (For external power adapter).
|
Input Voltage |
: Redundant Dual DC 12V-5 6V Power Input |
|
Overload Current Protection |
: Yes |
|
Reverse Polarity Protection |
: Yes |
|
Power Consumption |
: 5.76W@48 VDC full load |
|
Housing |
: Rugged Metal ,IP30 Protection |
|
Dimensions |
: 155 x 48 x 120 mm (L x W x D) |
|
Weight |
: Unit Weight: 0.45kg, Shipping Weight: 0.65kg |
|
Mounting |
: DIN-Rail Mounting, Wall Mounting |
|
Operating Temperature |
: -40°C to +75°C |
|
Storage Temperature |
: -40°C ~ 85°C (-40°F ~ 185 °F) |
