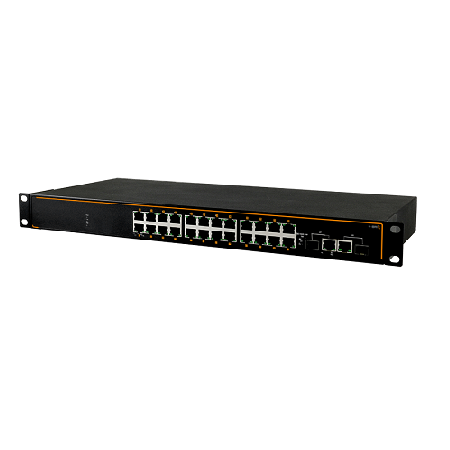

26-Port Industrial Rack-Mount Gigabit Managed Ethernet Switch
26-Port Industrial Rack-Mount Gigabit Managed Ethernet Switch
24×10/100/1000Base-T(X) + 2xGigabit Combo Ports (2 x10/100/1000Base-T(X) or 2*1000Base-X SFP Slots)
- 24-port 10/100/1000Tx Ethernet ports
- 2x Gigabit Combo Ports (2×10/100/1000Tx RJ45 and 2×100/1000 SFP Slot)
- System Power Input: 90-264VAC
- IP40 Rugged Metal Case Design
- Rack Mounting
- Operating Temperature Range – STD: -10°C ~ 65°C, OT: -40°C ~ 75°C
| Wavelength | : Depends on SFP modules |
| RS232 Serial Console | : 1*RS232 in RJ45 connector with console cable, baud rate 115200bps,8,N,1 |
| Optical Cable | : Multi-mode cable – 50/125um or 62.5/125um, Single-mode cable – 9/125um or 10/125um |
| Input Voltage: | : 100-240VAC power input |
| Overload Current Protection | : Yes |
| Reverse Polarity Protection | : Yes |
| Power Consumption | : Max. 24W full loading |
| Housing | : Metal, IP40 protection |
| Dimensions | : 440 x 44 x 200 mm (W x H x D) |
| Weight | : Unit Weight: 2.8 kg, Shipping Weight: 3.6 kg |
| Mounting | : 19″ rack mounting |
| Operating Temperature | : STD: -10°C ~ 65°C (14°F ~ 149°F) |
| Storage Temperature | : -40°C ~ 75°C (-40°F ~ 167 °F) |
| Operating Humidity | : 5 to 95%, (non-condensing) |
| EMI | : FCC Part 15 Subpart B Class A, CE EN 55022 Class A |
