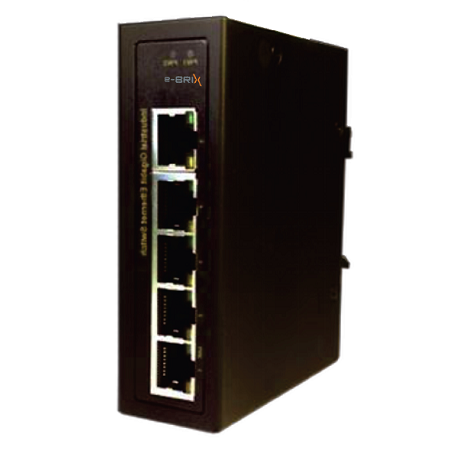

5-Port Industrial Gigabit Ethernet Switch
5-Port Industrial Gigabit Ethernet Switch
5*10/100/1000Tx, 12-56VDC Power Input or 18VAC – 36VAC
5-port 10/100/1000Tx Gigabit Ethernet
Redundant Power Input Design, 12- 56VDC or 18VAC – 36VAC
IP30 Rugged Metal Case Design
DIN-Rail Mounting, Wall Mounting
Operating Temperature Range : -40°C ~ 75°C
5-port 10/100/1000Tx Gigabit Ethernet
Redundant Power Input Design, 12- 56VDC or 18VAC – 36VAC
IP30 Rugged Metal Case Design
DIN-Rail Mounting, Wall Mounting
Operating Temperature Range : -40°C ~ 75°C
| RJ45 Ports: | 5xRJ-45 10/100/1000BaseT(X) auto negotiation, Auto MDI/MDI-X function, Full/Half duplex |
| Input Voltage: | 12VDC-56VDC or 18VAC-36 VAC |
| Overload Current Protection: | Yes |
| Reverse Polarity Protection: | Yes |
| Power Consumption: | 2.76W@48 VDC full load |
| Housing: | Rugged Aluminum, IP 30 protection |
| Dimensions: | 103.5 x 32 x 81.5 mm (L x W x D) |
| Weight: | Unit Weight: 0.5kg, Shipping Weight: 0.7kg |
| Mounting: | DIN-Rail Mounting, Wall Mounting |
| Operating Temperature: | -40°C to 75°C |
| Storage Temperature: | -40°C ~ 85°C (-40°F ~ 185 °F) |
| Operating Humidity: | 5 to 95%, (non-condensing) |
| EMI: | FCC Part 15 Subpart B Class A |
| EMC / EMS: | CE, FCC, VCCI |
| Free Fall: | IEC600 68-2-32 |
| Shock: | EN 60068-2-27 |
| Vibration: | EN 60068-2-6 |
| Green: | RoHS Compliant |
