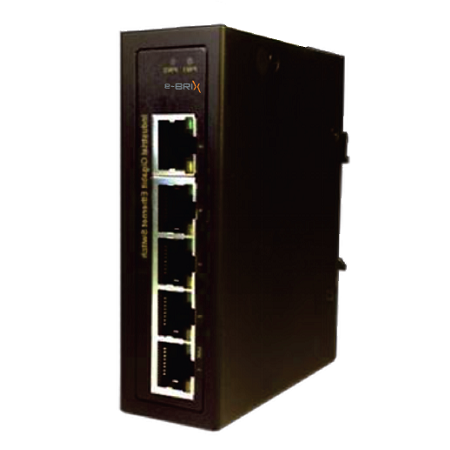

5-Port Industrial Unmanaged Ethernet Switch
5-Port Industrial Ethernet Switch
5*10/100Tx, 12-56VDC Power Input
- 5-port 10/100Tx Fast Ethernet
- Redundant Power Input Design, 12- 56VDC
- IP30 Rugged Metal Case Design
- DIN-Rail Mounting
- Operating Temperature Range : -10°C ~ 65°C
- 5-port 10/100Tx Fast Ethernet
- Redundant Power Input Design, 12- 56VDC
- IP30 Rugged Metal Case Design
- DIN-Rail Mounting
- Operating Temperature Range : -10°C ~ 65°C
|
Input Voltage: |
12-56V DC, Single Power Input |
|
Overload Current Protection: |
Yes |
|
Reverse Polarity Protection: |
Yes |
|
Power Consumption: |
3.76W@56 V DC full load |
|
Housing: |
Rugged Sheet Metal, IP30 protection |
|
Dimensions: |
103.5 x 32 x 81.5 mm (L x W x D) |
|
Weight: |
Unit Weight: 0.5kg, Shipping Weight: 0.7kg |
|
Mounting: |
DIN-Rail Mounting |
|
Operating Temperature: |
STD: -10°C ~ 65°C (14°F ~ 149°F) |
|
Storage Temperature: |
-40°C ~ 85°C (-40°F ~ 185 °F) |
- 5-port 10/100Tx Fast Ethernet
- Redundant Power Input Design, 12- 56VDC
- IP30 Rugged Metal Case Design
- DIN-Rail Mounting
- Operating Temperature Range : -10°C ~ 65°C
- 5-port 10/100Tx Fast Ethernet
- Redundant Power Input Design, 12- 56VDC
- IP30 Rugged Metal Case Design
- DIN-Rail Mounting
- Operating Temperature Range : -10°C ~ 65°C
|
Input Voltage: |
12-56V DC, Single Power Input |
|
Overload Current Protection: |
Yes |
|
Reverse Polarity Protection: |
Yes |
|
Power Consumption: |
3.76W@56 V DC full load |
|
Housing: |
Rugged Sheet Metal, IP30 protection |
|
Dimensions: |
103.5 x 32 x 81.5 mm (L x W x D) |
|
Weight: |
Unit Weight: 0.5kg, Shipping Weight: 0.7kg |
|
Mounting: |
DIN-Rail Mounting |
|
Operating Temperature: |
STD: -10°C ~ 65°C (14°F ~ 149°F) |
|
Storage Temperature: |
-40°C ~ 85°C (-40°F ~ 185 °F) |
