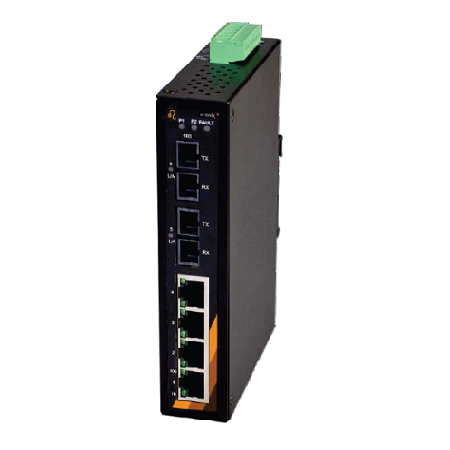

6-Port Industrial Unmanaged Ethernet Switch
6-Port Industrial Unmanaged Ethernet Switch
4×10/100Tx + 2x100Fx, 12-48VDC Power Input
- 6-Port Industrial Ethernet Switch
- 2-port 100Fx – SC connector (Multi Mode)
- Redundant Power Input Design, 12-48VDC
- Built-in Relay Output Warning for Power Failure
- IP30 Rugged Metal Case Design
- DIN-Rail Mounting, Wall Mounting
- Operating Temperature Range – STD: -10°C ~ 65°C
- 6-Port Industrial Ethernet Switch
- 2-port 100Fx – SC connector (Multi Mode)
- Redundant Power Input Design, 12-48VDC
- Built-in Relay Output Warning for Power Failure
- IP30 Rugged Metal Case Design
- DIN-Rail Mounting, Wall Mounting
- Operating Temperature Range – STD: -10°C ~ 65°C
|
Input Voltage |
: 12-48VDC, Redundant Input |
|
Overload Current Protection |
: Yes |
|
Reverse Polarity Protection |
: Yes |
|
Power Consumption |
: 6Watts |
|
Housing |
: Metal, IP30 protection |
|
Dimensions |
: 30 x 142 x 99 mm (W x H x D) |
|
Weight |
: Unit Weight: 0.5kg, Shipping Weight: 0.7kg |
|
Mounting |
: DIN-Rail Mounting, Wall Mounting |
|
Operating Temperature |
: STD: -10°C ~ 65°C (14°F ~ 149°F) |
|
Storage Temperature |
: -40°C ~ 85°C (-40°F ~ 185 °F) |
|
Operating Humidity |
: 5 to 95%, (non-condensing) |
