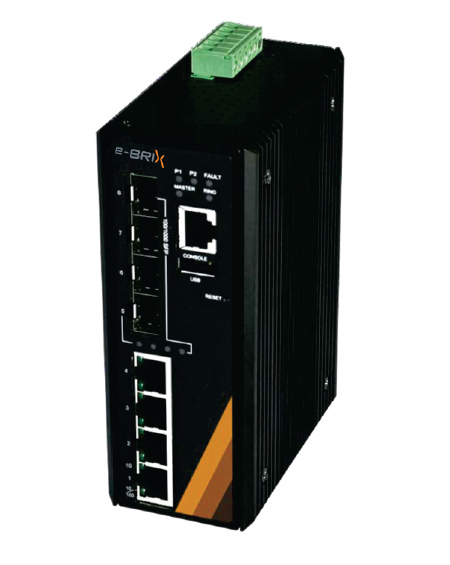

8-Port Industrial Gigabit Managed Ethernet Switch
8-Port Industrial Gigabit Managed Ethernet Switch
4*10/100/1000Base-T(X) + 4*100/1000Base-(F)X SFP Slots
- 4-port 10/100/1000Base-T(X) Gigabit Ethernet
- 4-port dual rate 100/1000Base-(F)X SFP slots
- Multiusers account for security
- Configuration: http, https, CLI Command, Telnet, SNMP, SSH
- Network redundancy support: G.8032 ERPS v2/STP/RSTP/MSTP
- Operating temperature range – STD: -10°C ~ 65°C
- Supports IP route for routing function
- Supports RADIUS, TACACS+ authentication protocol
- Supports QoS, LACP bandwidth control
- Supports VLAN, SNMP v1/v2c/v3, ACL, IP source guard for Ethernet security
- Redundant power inputs design
| Rs232 Serial Console | : 1*RS232 in RJ45 connector with console cable, baud rate 115,200bps,8,N,1 |
| Optical Cable | : Multi-mode cable – 50/125um or 62.5/125um, Single-mode cable – 9/125um or 10/125um |
| Input Voltage | : Dual 12-48VDC redundant power inputs |
| Overload Current Protection | : Yes |
| Reverse Polarity Protection | : Yes |
| Power Consumption | : Max. 15W full loading |
| Housing | : Metal, IP30 protection |
| Dimensions | : 54 x 142 x 99 mm (W x H x D) |
| Weight | : Unit Weight: 0.84kg, Shipping Weight: 1.2 kg |
| Mounting | : DIN-Rail Mounting, Wall Mounting |
| Operating Temperature | : STD: -10°C ~ 65°C (14°F ~ 149°F) |
| Storage Temperature | : -40°C ~ 85°C (-40°F ~ 185 °F) |
| Operating Humidity | : 5 to 95%, (non-condensing) |
| EMI | : FCC Part 15 Subpart B Class A, CE EN 55022 Class A |
