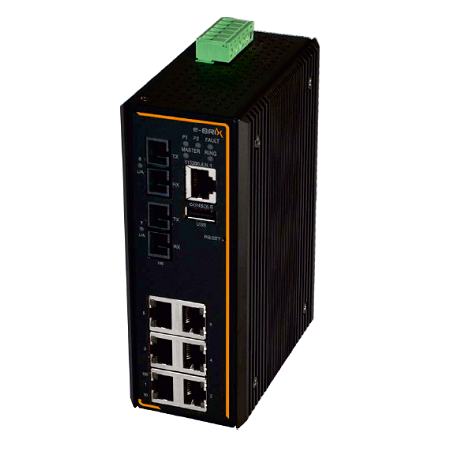

8-Port Industrial Managed Ethernet Switch Multi/Single Mode
8-Port Industrial Managed
Ethernet Switch 6*10/100Tx + 2*100Fx, 12-48VDC Power Inputs
- 6-port 10/100Tx Fast Ethernet
- 2-port 100Fx – SC/ST connector (Multi/Single Mode)
- Configuration: Web GUI, Serial Console, CLI Command
- Redundant Power Inputs Design, 12-48VDC
- IP30 Rugged Metal Case Design
- DIN-Rail Mounting, Wall Mounting
- Operating Temperature Range – STD: -10°C ~ 65°C
- Network Redundancy support: G.8032ERPS,RSTP,MSTP
- Supports IGMP v1/v2, up to 256 groups
- Supports IEEE802.1p QoS and CoS/ToS
- Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3
- System Warning setting for automatic warning through e-mail
|
Input Voltage |
: 12-48VDC, Redundant Inputs |
|
Overload Current Protection |
: Yes |
|
Reverse Polarity Protection |
: Yes |
|
Power Consumption |
: 13 Watts for System |
|
Housing |
: Metal, IP30 protection |
|
Dimensions |
: 54 x 142 x 99 mm (W x H x D) |
|
Weight |
: Unit Weight: 0.86kg, Shipping Weight: 1.22 kg |
|
Mounting |
: DIN-Rail Mounting, Wall Mounting |
|
Operating Temperature |
: STD: -10°C ~ 65°C (14°F ~ 149°F) |
|
Storage Temperature |
: -40°C ~ 85°C (-40°F ~ 185 °F) |
|
Operating Humidity |
: 5 to 95%, (non-condensing) |
|
EMI |
: FCC Part 15 Subpart B Class A, CE EN 55022 Class A |
