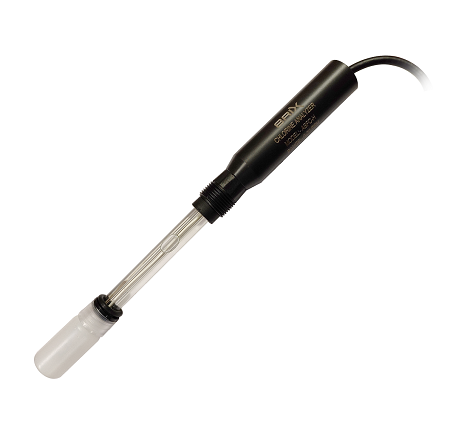

Chlorine Analyzer

Measuring Principle	Three electrode Amperometric free chlorine sensor. It operates based on the principle of Potentiostatic amperometry.
Measuring Range	0 to 20 mg/l
Unit	mg/l
Accuracy	<±3%FS
Resolution	0.01 mg/l
Source Voltage	+10 – 27 VDC
Consumption	At regular operation: 20 mA
Pressure	Max. 6 bar
Optimum flow rate	25 – 100 LPH
Operate Temp.	-10 to 60 degree C
Temperature Compensation	Automatic/Manual
pH Compensation	Yes
Interface	Modbus RS485
Material	Glass + POM
Cable & Length	polyurethane jacket, bare wires or waterproof Fisher 1 meter(standard), higher length on request
Weight	Approx. 0.4 Kg (sensor + cable 1 metres )
Isolation Strength	2500 Vrms

For no reagent and membrane in the Chlorine probe,
this sensor significantly lowers the operating cost and
maintenance
The sensor can work with all terminals that can
receive the RS485 signals.
Dust and Water Proof Structure
Temperature and pH Compensation
Factory pre-calibration for easy setup and field calibration for more accuracy
