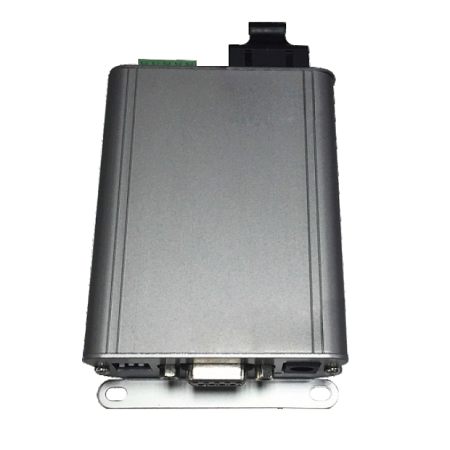

EB-120 Serial to Optical Data Converter
EB-120 is a media converter that can convert one RS-232 and/or one RS-422/485 ports to be transmitted over a single fiber or two fibers. A DIP switch is used to setup two-wire/ four-wire operation mode and to enable internal termination for RS-422/485 port, and to configure RS-232 port to operate in either DTE or DCE mode.
EB-120 series are available in type of compact stand-alone box that can meet versatile field installation demands like on desktop and wall-mount.
- Convert one RS-232 and/or one RS-422/485
- Complies with EIA/TIA-232, EIA/TIA-574 and CCITT V.28 standard s
- Complies with EIA/TIA-422, EIA/TIA-485
- Distance Up to 5km with multimode fiber
- Distance Up to 120km with single mode fiber
- Clear LED Indications
- MTBF > 50000 Hours
- Compact size: 68x101x30mm
- Convert one RS-232 and/or one RS-422/485
- Complies with EIA/TIA-232, EIA/TIA-574 and CCITT V.28 standard s
- Complies with EIA/TIA-422, EIA/TIA-485
- Distance Up to 5km with multimode fiber
- Distance Up to 120km with single mode fiber
- Clear LED Indications
- MTBF > 50000 Hours
- Compact size: 68x101x30mm
