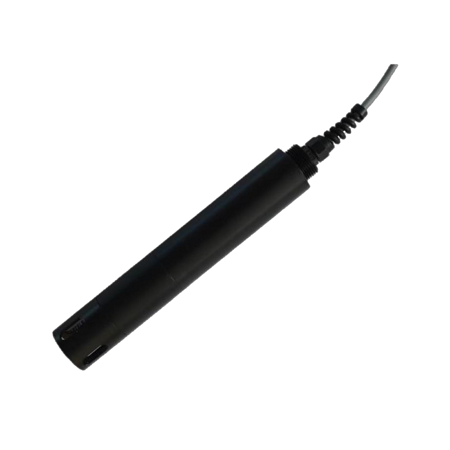

pH/ ORP Sensor
- Measuring Principle: The electrochemical ion selective method
- Temp. Compensation : Pt100, 0 to 85°C Auto compensation
- Interface: Modbus RS485
- Material: Glass Sensor, Housing POM
- Cable & Length: Coaxial armored, Polyurethane, bare wire, or Fisher connector 10 meters (standard), higher length on request
- Weight: Approx. 150g(POM), Cable 80 g/m
- Protection: IP 68
- CE Marking: EN 61326-1:2013 Electromagnetic Compatibility EMC
- 0.05 W Ultra-Low Power Consumption, Ideal for Outdoor Applications
- Lightning and Surge Protection for Power and RS485 Communication
- 1-sec On-line Real-time Measurement
- Temperature Compensation
- Robust & Waterproof(lP68)
- Factory pre-calibration for easy setup and field calibration for more accuracy
- Standard Modbus RTU Protocol, Direct Connected with PLC, HMI,
- Eliminate I/O Module Cost
- Fully compatible with PC software ViewTM for easy setup and data logging
- Industrial Wastewater
- Municipal & Sewage Wastewater
- Drinking Water
- Surface Water Monitoring
- Sanitation Network
