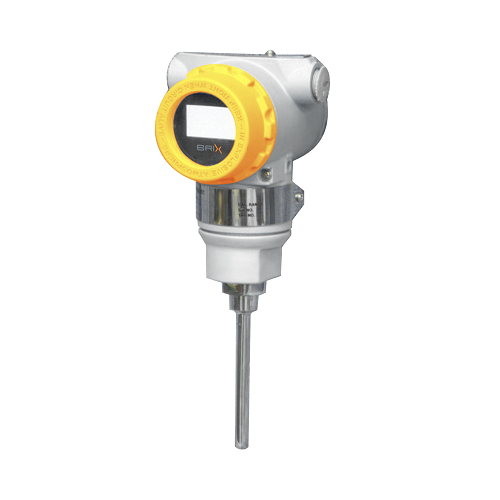

Smart Temperature Transmitter – TT04
- 4-20 mA HART Compatible
- Single & Dual Sensor Inputs
- Differential, Average & Redundant temperature measurement
- MOC Electronics Enclosure : Die Cast Aluminum / S S316
- Enhanced display with Local Operator Interface
- Sensor Redundancy / Peak Value Measurement / ΔT Measurement / Average
- ATEX Certified
- Output : 4-20 mA, 4-20 mA with HART
- Isolation : 1 kV between Input, Output & Power Supply
- Power Supply : 24V DC Two Wire Loop Powered
- Power Consumption : < 50 mW
- Response Time : < 300 mSec
- Mounting : DIN Rail & Pipe Mount
- Certification : CE & ATEX
