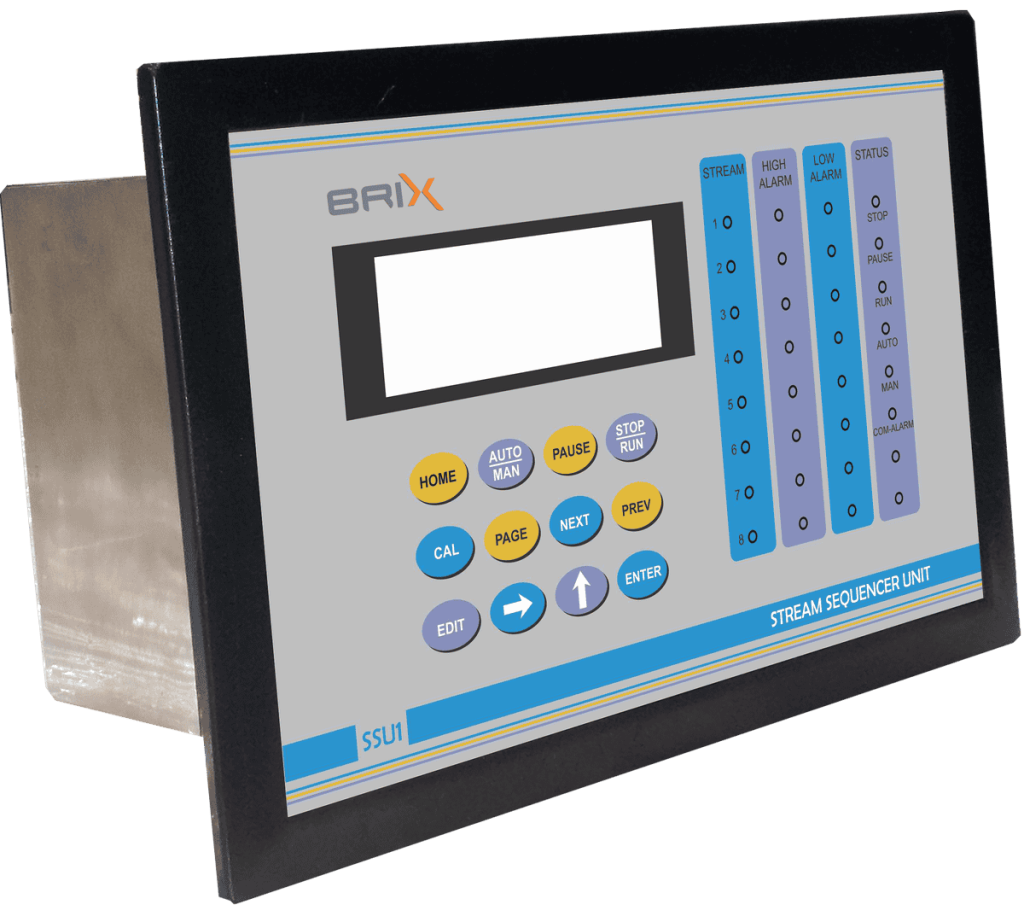

Stream Sequencer Unit (SSU1)
The system is based on an 8-bit microcontroller. It is to be used for selecting one of the EIGHT streams by SYNC. The pulse from Analyzer if the trigger mode is Pulse. Stream selection will be according to preprogrammed timings if the trigger mode selected is TIME. With the help of a keypad and display on the front, the system allows to set and modify the following parameters of each stream.
- Designed for sample sequencing selection
- Suitable for longer service in a safe area.
- Easy to install
- Easy to configure as required with help of a keypad and display
- Light weighted
- Easy to operate & user friendly
- 6 Nos. sample Stream selection for analysis with this unit
- Multiple outputs per stream
- Analogue and digital input provision
- 6 Nos. analog output provision
- Front Keypad easy for configuration
- Common alarm contact available
- Maintenance free
- Easy to replace all card
- Male Female Terminal at the bottom side for easy disconnecting of
the unit - Low power consumption
- 32 discrete LEDs for process status indication
|
Sample |
: Water |
|
Power Supply |
: 20 VA |
|
Type |
: SSU 1 |
|
Mounting |
: Panel Mounting |
|
Dimensions |
: Refer Datasheet |
