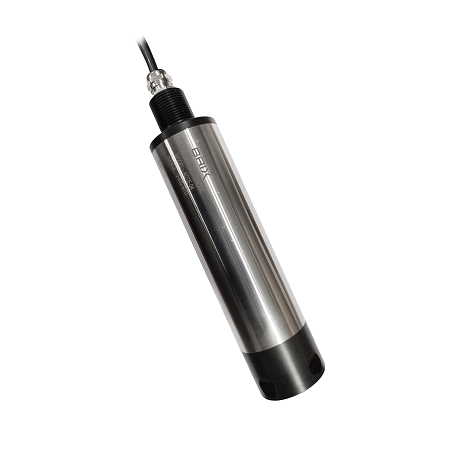

Turbidity Analyzer

Measuring Principle: Near-infrared LED (880nm/ 850nm) and 90° scattered light method under ISO 1027/EN 27027
Interface: Modbus RS485
Material: 316L, Sapphire Glass (Titanium Body Coating is Optional) Auto-Cleaning Automatic wiper cleaning system
Cable & Length: 9 armored connectors, polyurethane jacket, bare wires or waterproof Fisher 3 meter(standard), higher length on request
Weight : Approx. 1.3 kgs(sensor + cable 3 metres
Protection: IP 68
CE Marking: EN 61326-1:2013 Electromagnetic Compatibility EMC

Optical Sensor Near-infrared LED (880nm) and 90°scattered light method under ISO 1027/EN 27027
Automated mechanical wiper is available for Surface cleaning & air bubble removal
Robust & Waterproof(lP68) Digital sensor: Modbus RS-485
Factory pre-calibration for easy setup and field calibration for more accuracy
Fully compatible with PC software ViewTM for easy setup and data logging
